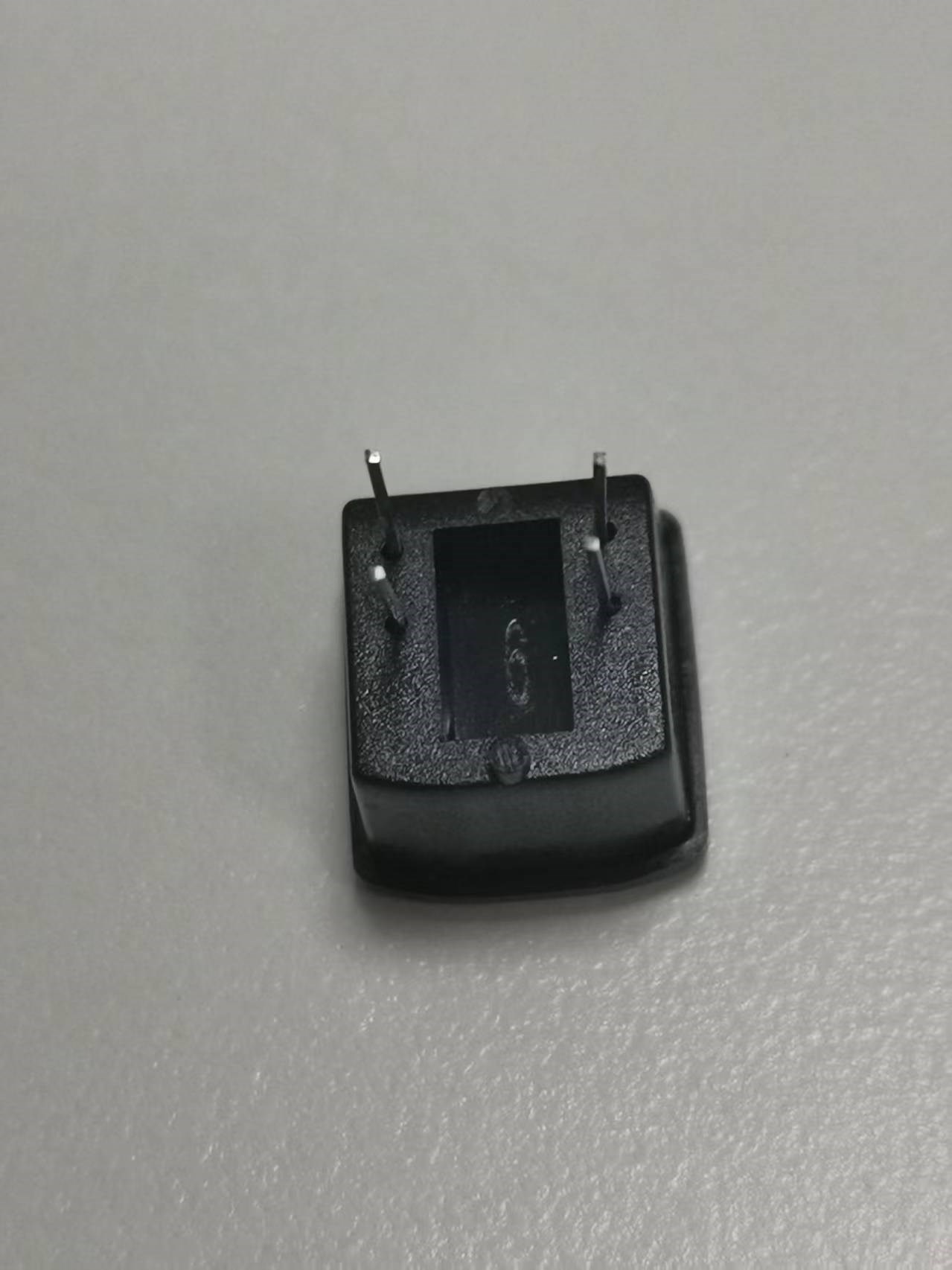

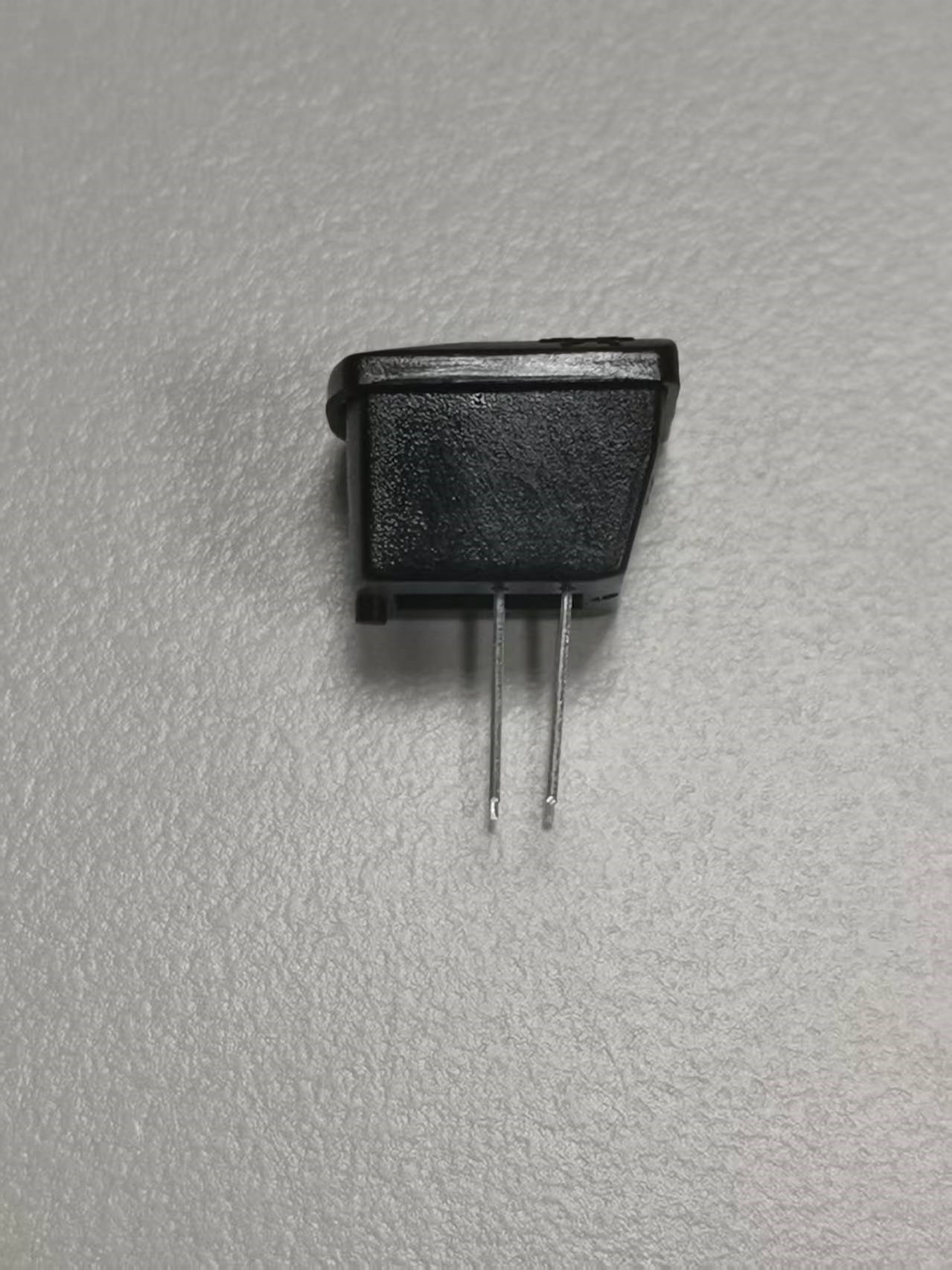

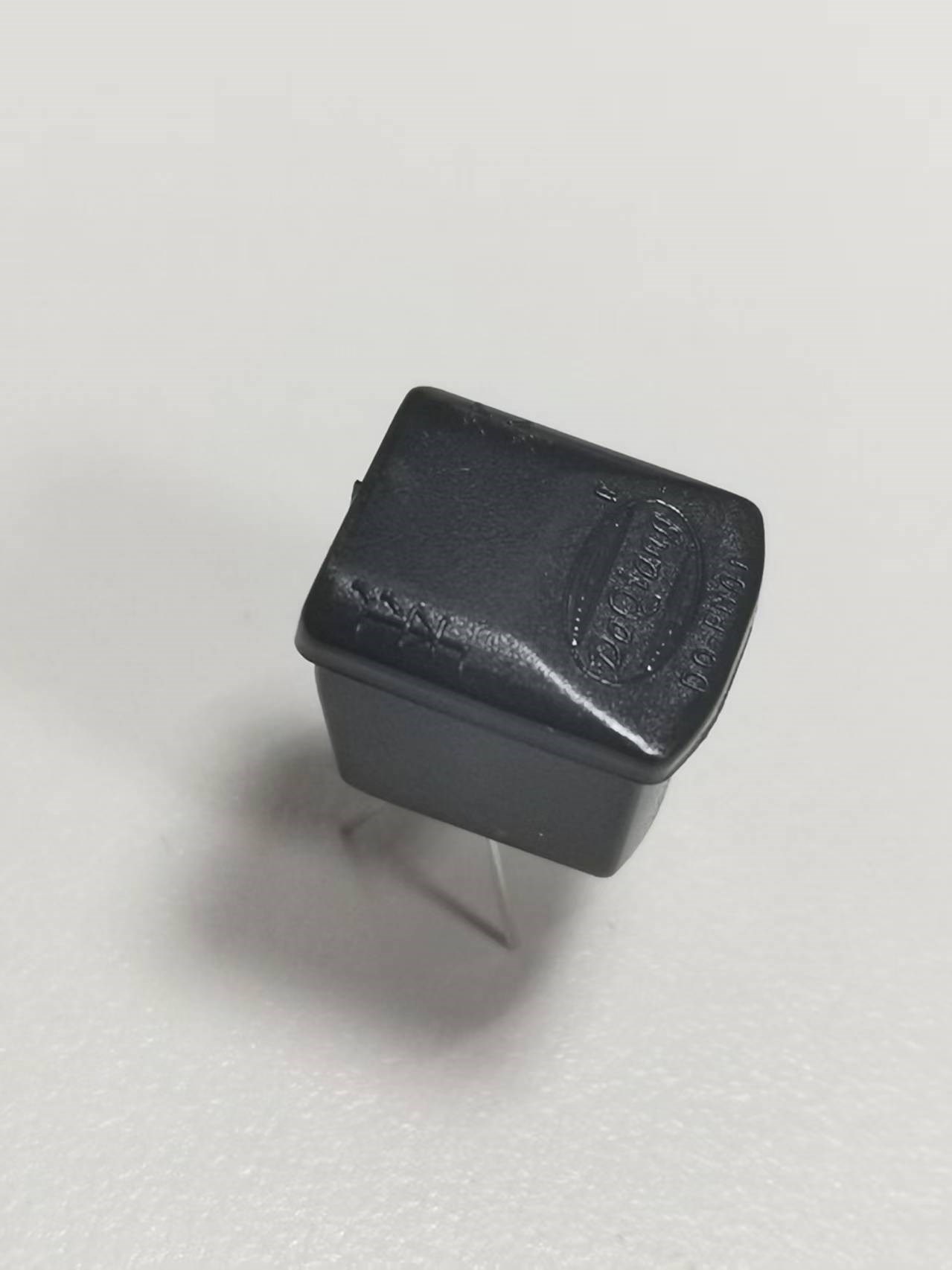

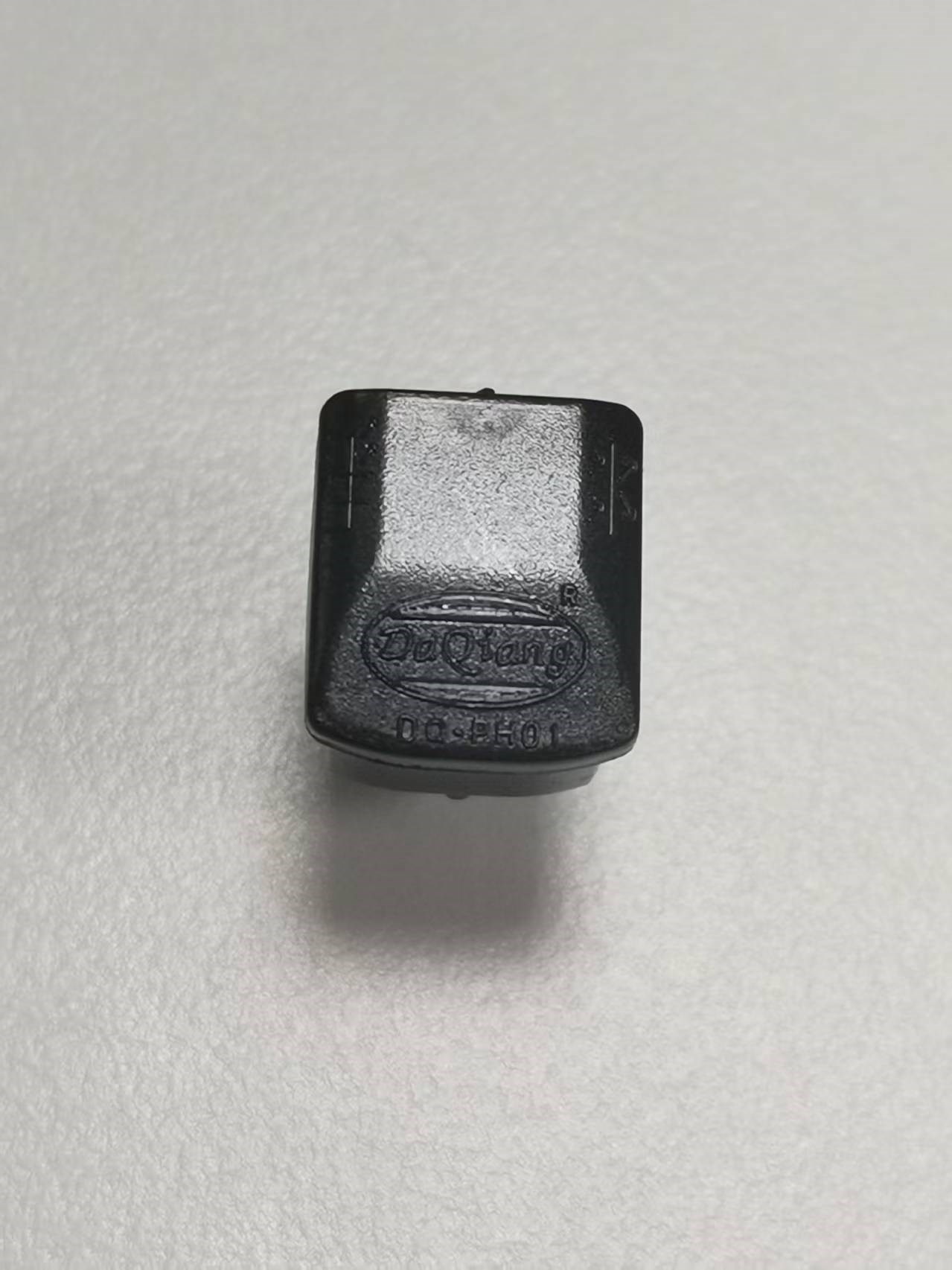

Photoelectric switch sensor

Product Introduction

●Applications

★5° Horizontal Detection: Ideal for horizontal, vertical, and tilt detection in various electrical appliances.

1.Iron: Horizontal and vertical position detection.

2.LCD Displays: Tilt detection for automatic shutdown or safety alerts.

3.Household Appliances: Anti-tilt protection for fans, air purifiers, humidifiers, etc.

●Features

1.Compact Design: Ultra-small footprint, minimizing space requirements in device integration.

2.High Reliability: Non-contact sensing technology ensures precise tilt and recovery angle detection with minimal drift.

3.IC-Trigger Compatibility: Optimized for direct integration with microcontroller input signals.

4.Photoelectric Sensing: Immune to metal oxidation and mechanical wear, ensuring consistent performance over lifecycle.

5.Mercury-Free: Environmentally compliant design, replacing hazardous mercury switches.

6.Long Lifespan: Maintenance-free operation with no moving parts, eliminating safety risks.

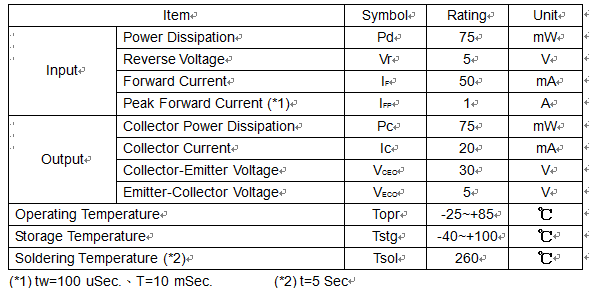

●  Absolute Maximum Rating （Ta=25℃）
