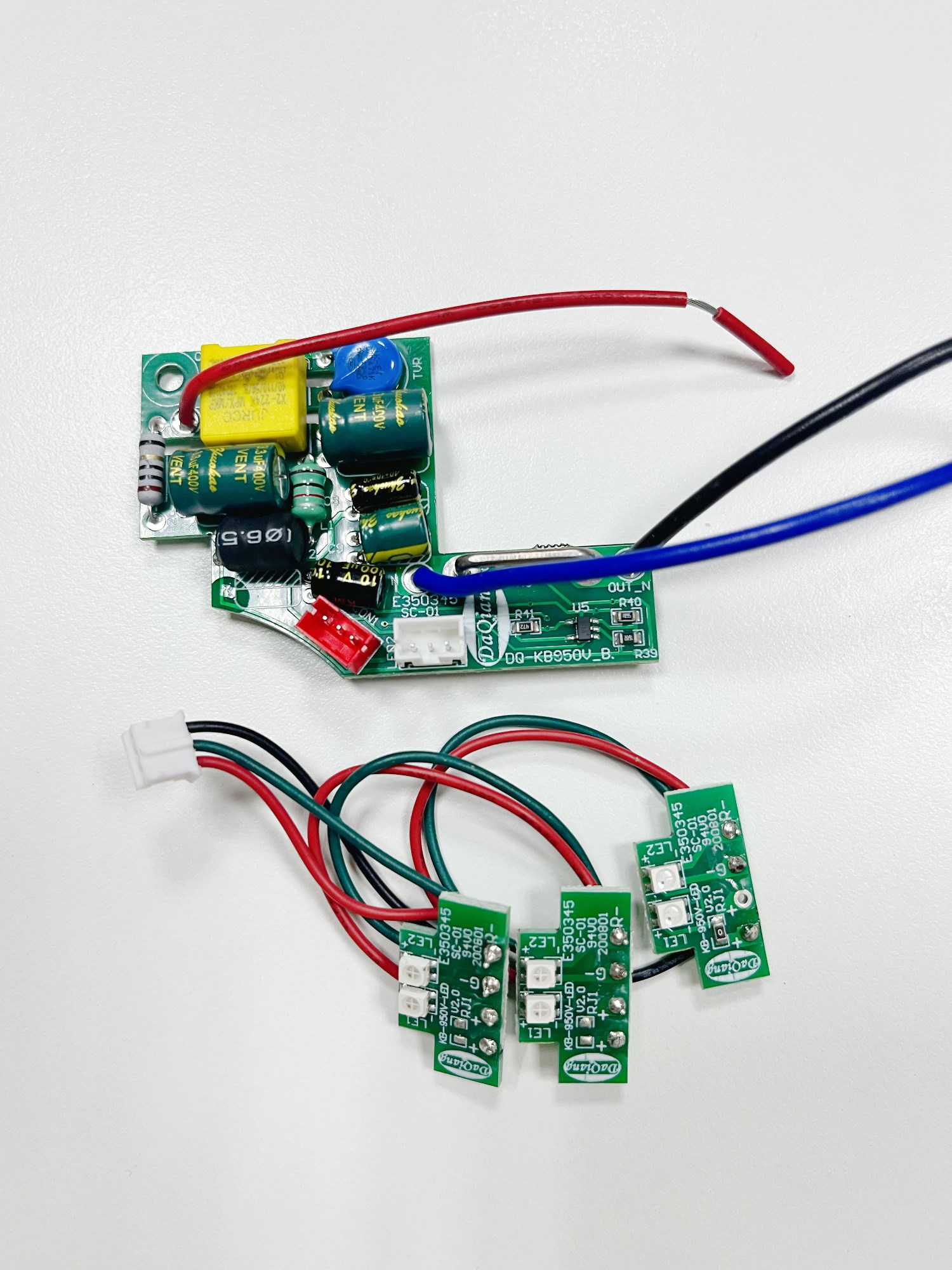

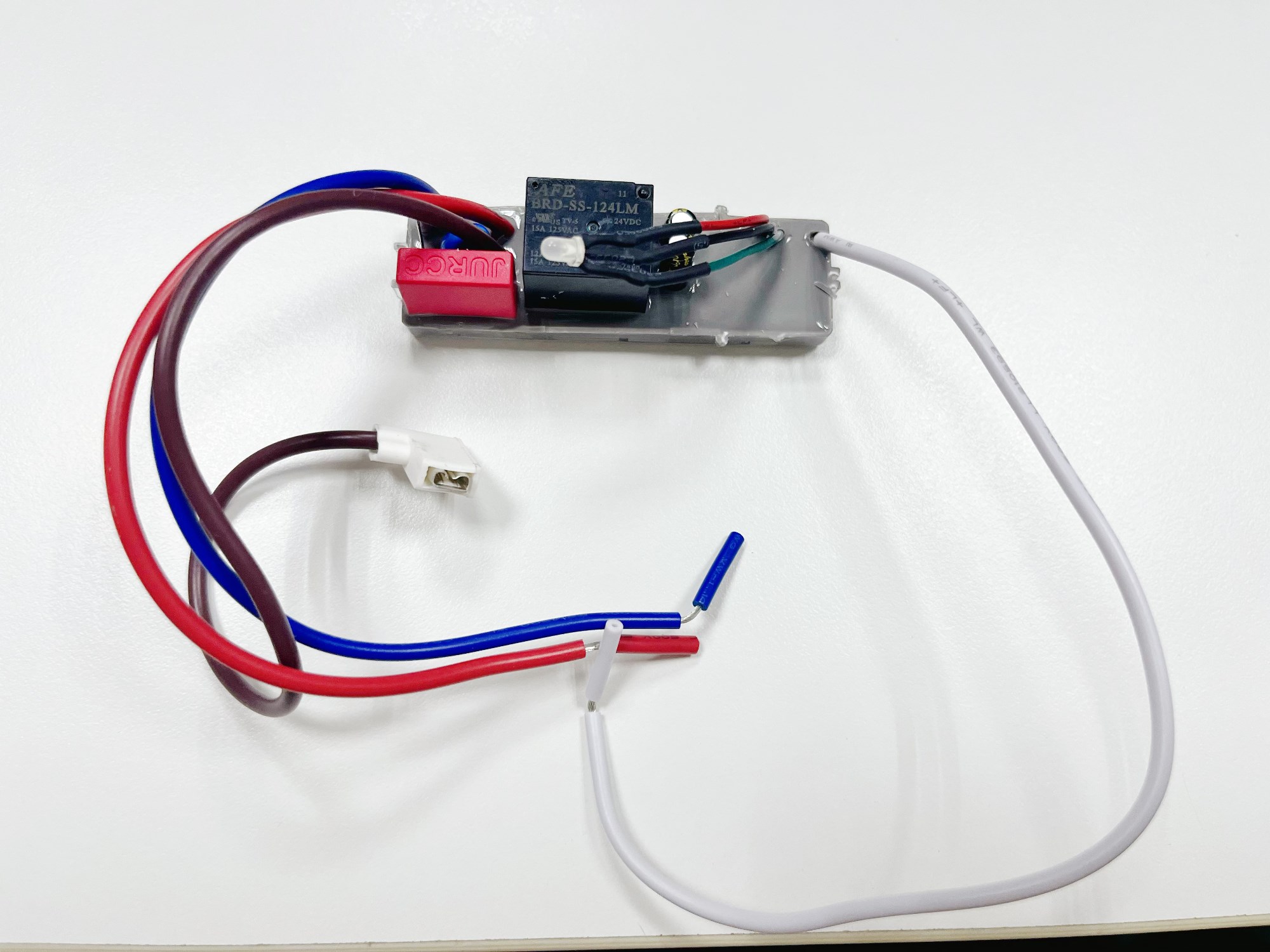

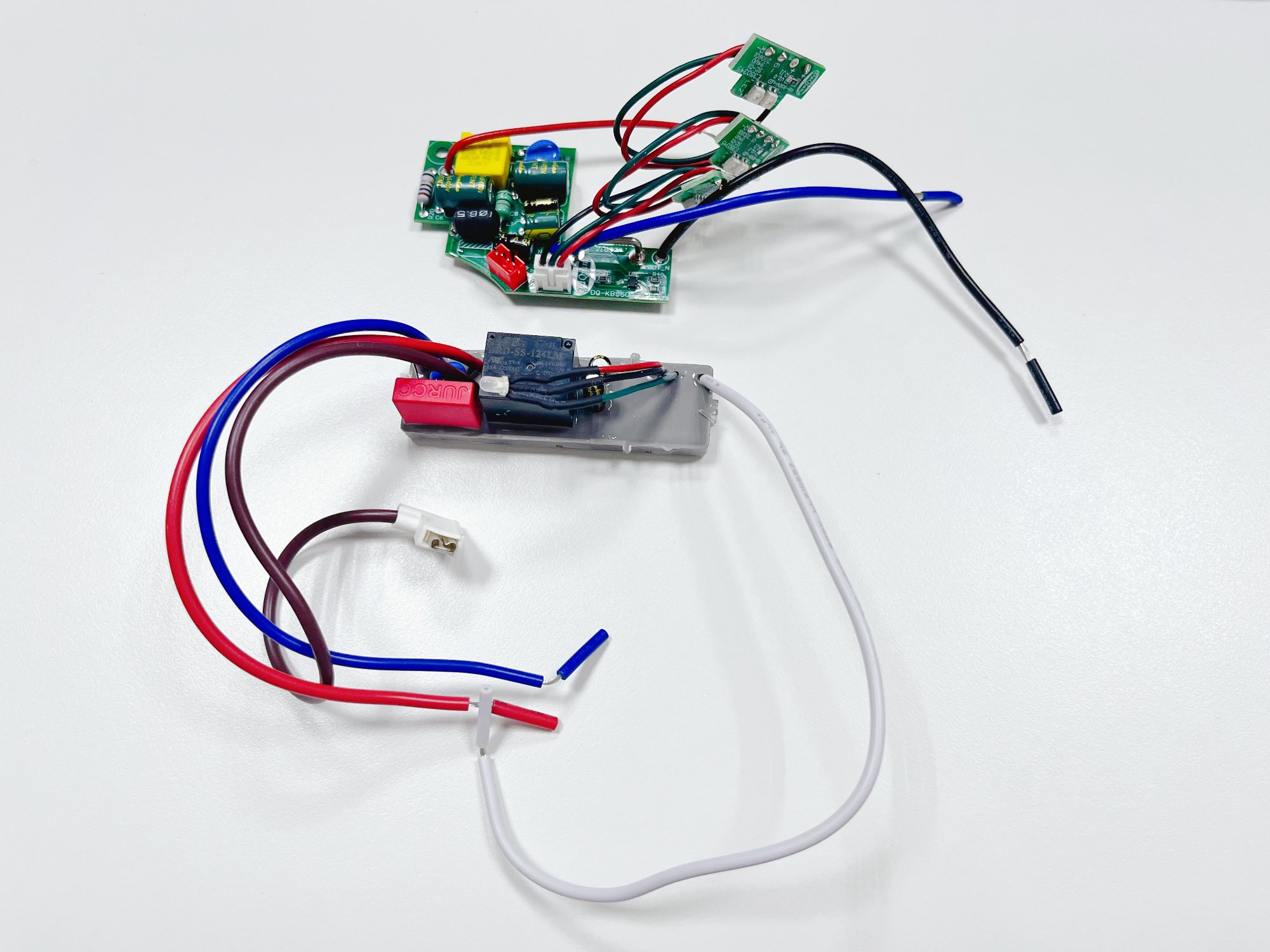

Electric Iron Control Board

Electric Iron Control Board

Input Voltage: 240V AC 50Hz
Output Power: 2400W

Function Description:

★LED Indicator Logic:

When the iron is not placed on the base, the base's LED emits a red light.

When the iron is placed on the base for heating, the base's LED turns orange.

Once heating is complete, the LED switches to green (the iron can only be removed for work after the green light is on).

★Timing & Reheating Mechanism:

Automatic timing for reheating: If the iron is away from the base for less than 30 seconds, the base's LED remains steadily green.If away for over 30 seconds, the LED activates an orange breathing light (2 seconds on, 1 second off) to prompt returning the iron to the base for reheating.

★Safety Protection:

A vertical 8-minute stationary power-off protection function is included: if the iron is placed vertically and remains stationary for 8 minutes, it automatically powers off to prevent hazards.
