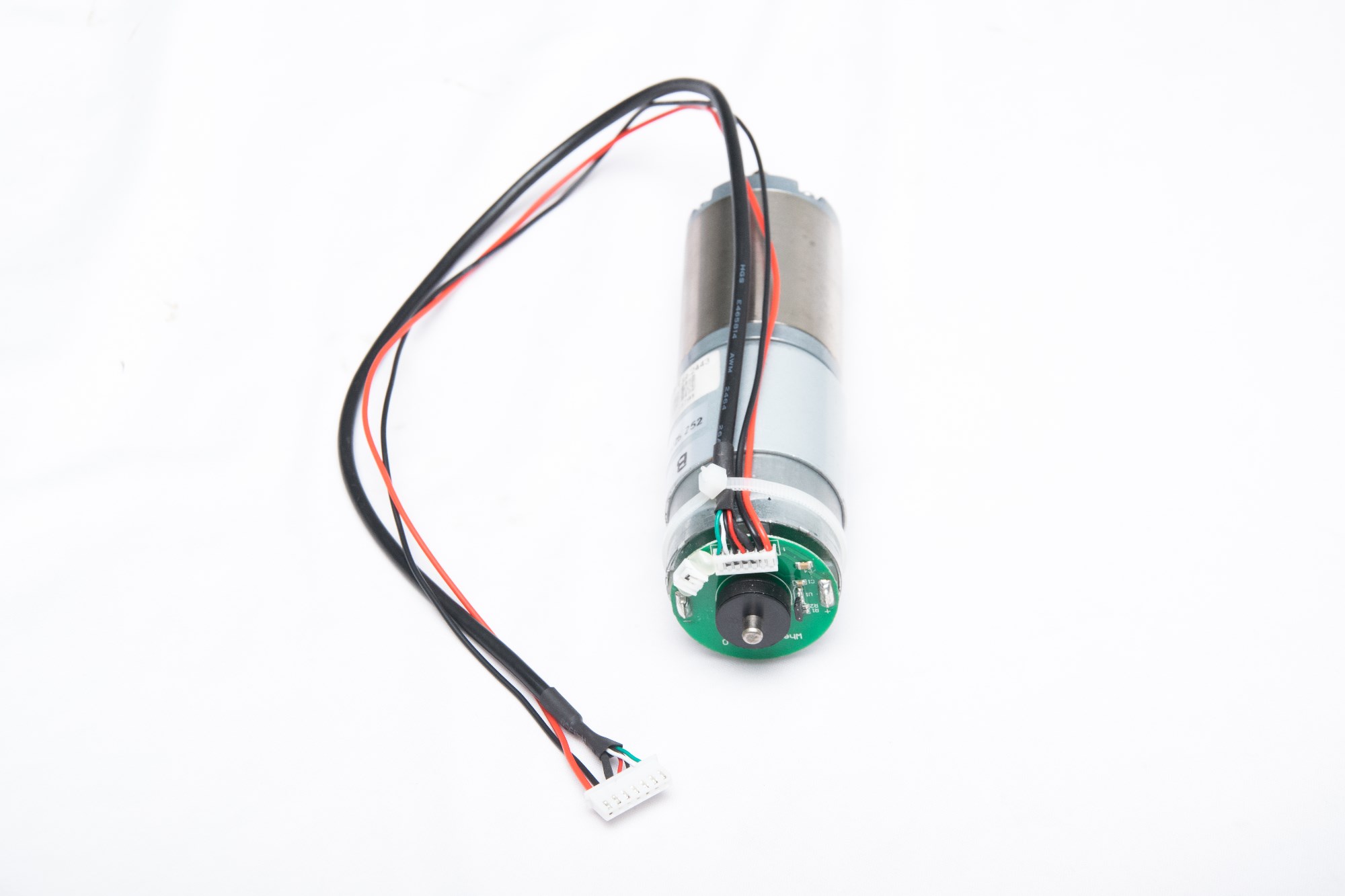

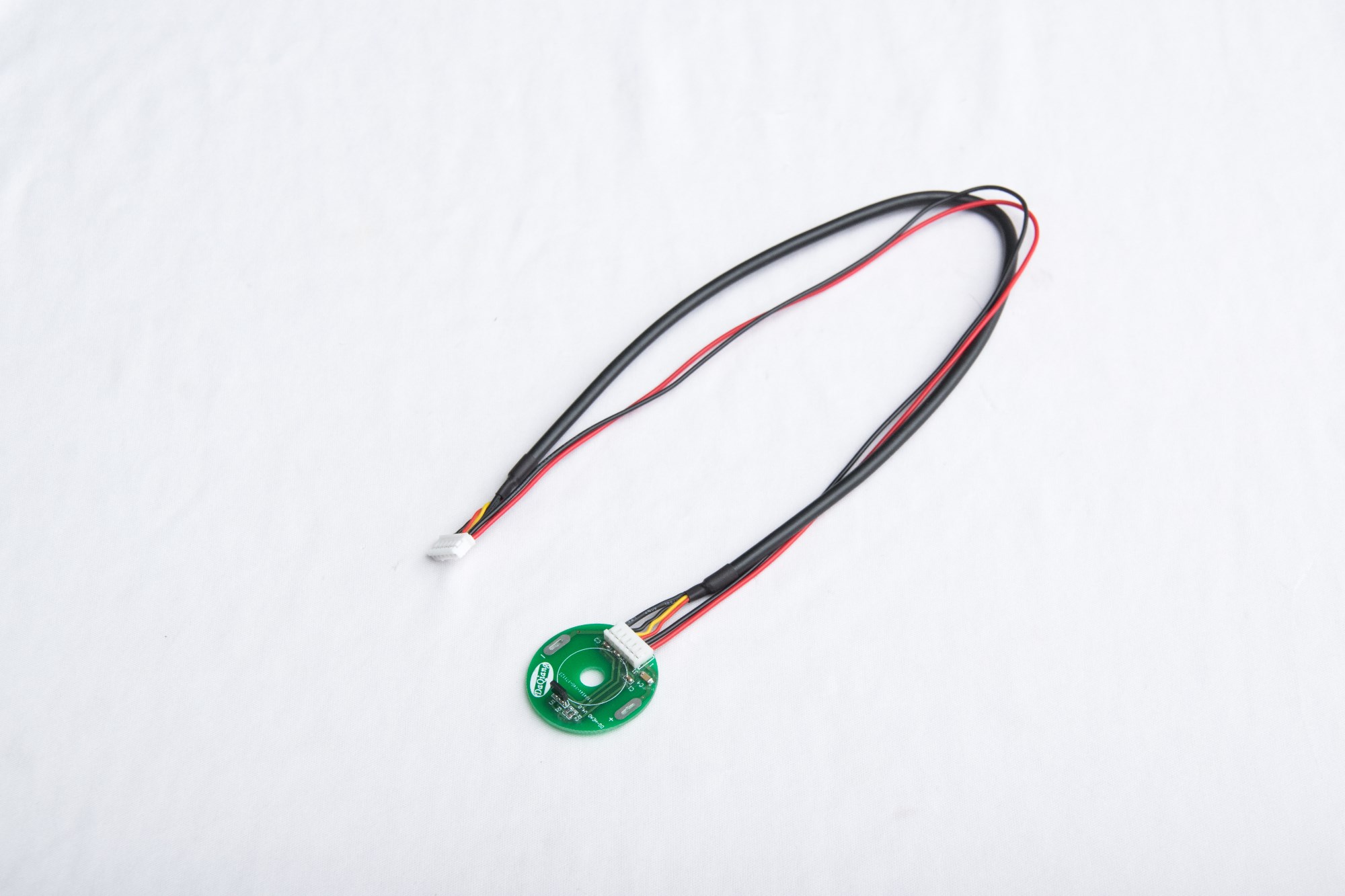

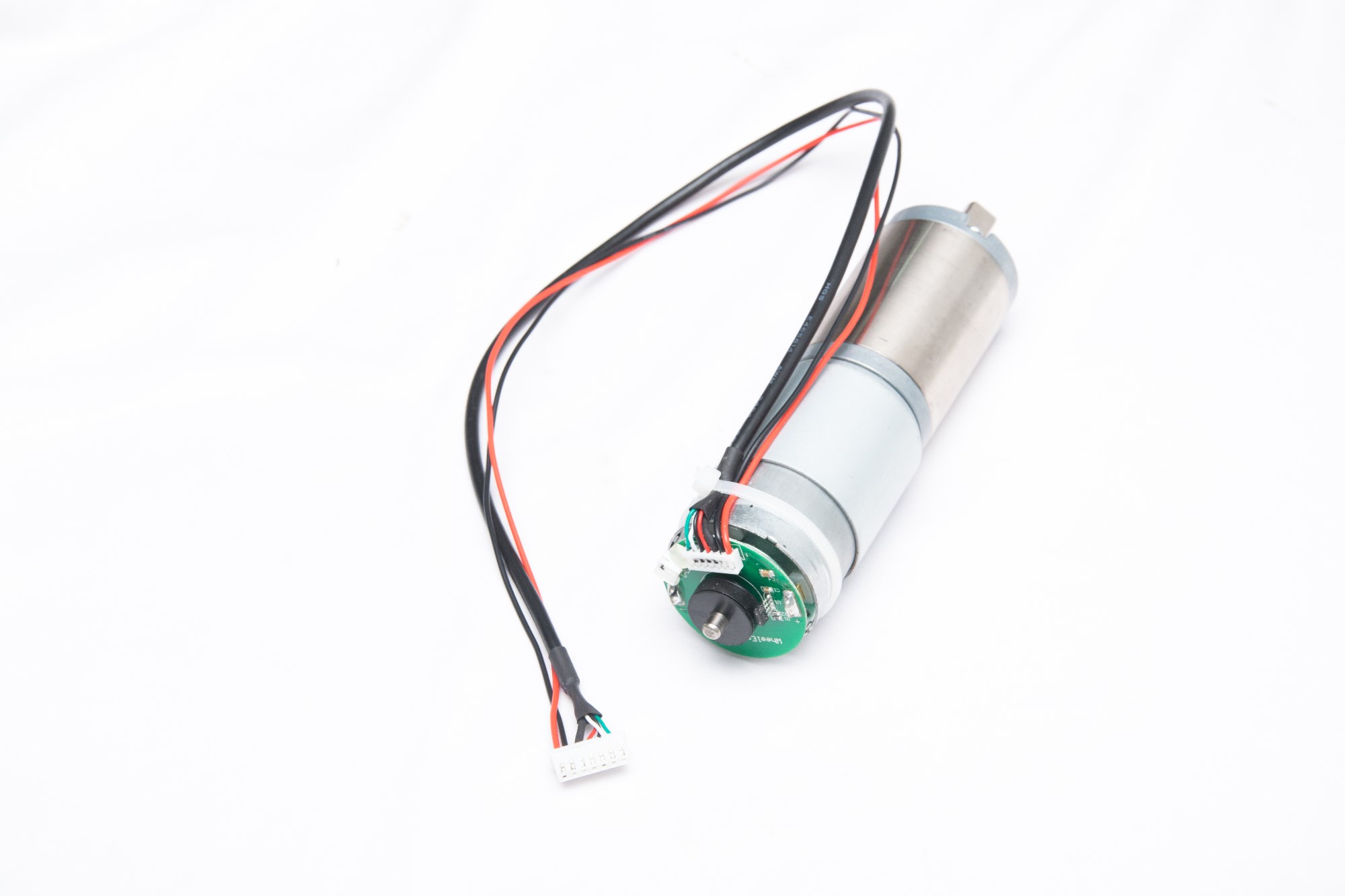

Electronic Control Board for Electromagnetic Encoders

Electronic Control Board for Electromagnetic Encoders

Input Voltage: DC 3-24V

Supported Motor Speed: Up to 3000 RPM (Revolutions Per Minute)

Function Description:

     Utilizes Hall sensors to detect phase changes, outputting A/B phase pulse signals   and a Z index signal. Calculates relative displacement through precise  pulse counting, enabling accurate motion measurement and control.

      We offer PCBA redevelopment and production according to customer requirements, and accept OEM & ODM  (whole machine) production services.
